Split-type Modulating Thermostat Controller
| Product code | Cooling valve | Heating valve | Fan speed | B3x operation mode | Supported low voltage thermostat interface |
|---|---|---|---|---|---|
|
DL-B33C |
0-10V proportional |
No |
3 relay (L, M, H) (SPST-NO) |
xx-TD70A (cooling & fan) xx-TD72A (cooling & fan & heating) xx = series (K2, GC2, G2, V2, JC2, EB2) |
Features
-
A Din-Rail modules which can be installed beside the FCU.
-
Input power: 230VAC.
-
Built-in 12V DC (2A) power supply for Touch Thermostat
-
Cooling value output: 0 - 10V
-
Control logic: proportional output on cooling valve.
-
Fan speed output: 3 relays for low, mid and high speed.
-
Relay rating:
Rated current Voltage 3A 250VAC 3A 24VAC 3A 24VDC 3A 12VDC
- Two RS-485 ports
Port Functions COM0 connect to Building Management System (BMS) download configuration, real time control and monitoring COM1 RJ45 jack - connect to low voltage touch thermostat with straight Cat5e cable
- 3 Digital inputs
-- Keycard input
-- Check-in input

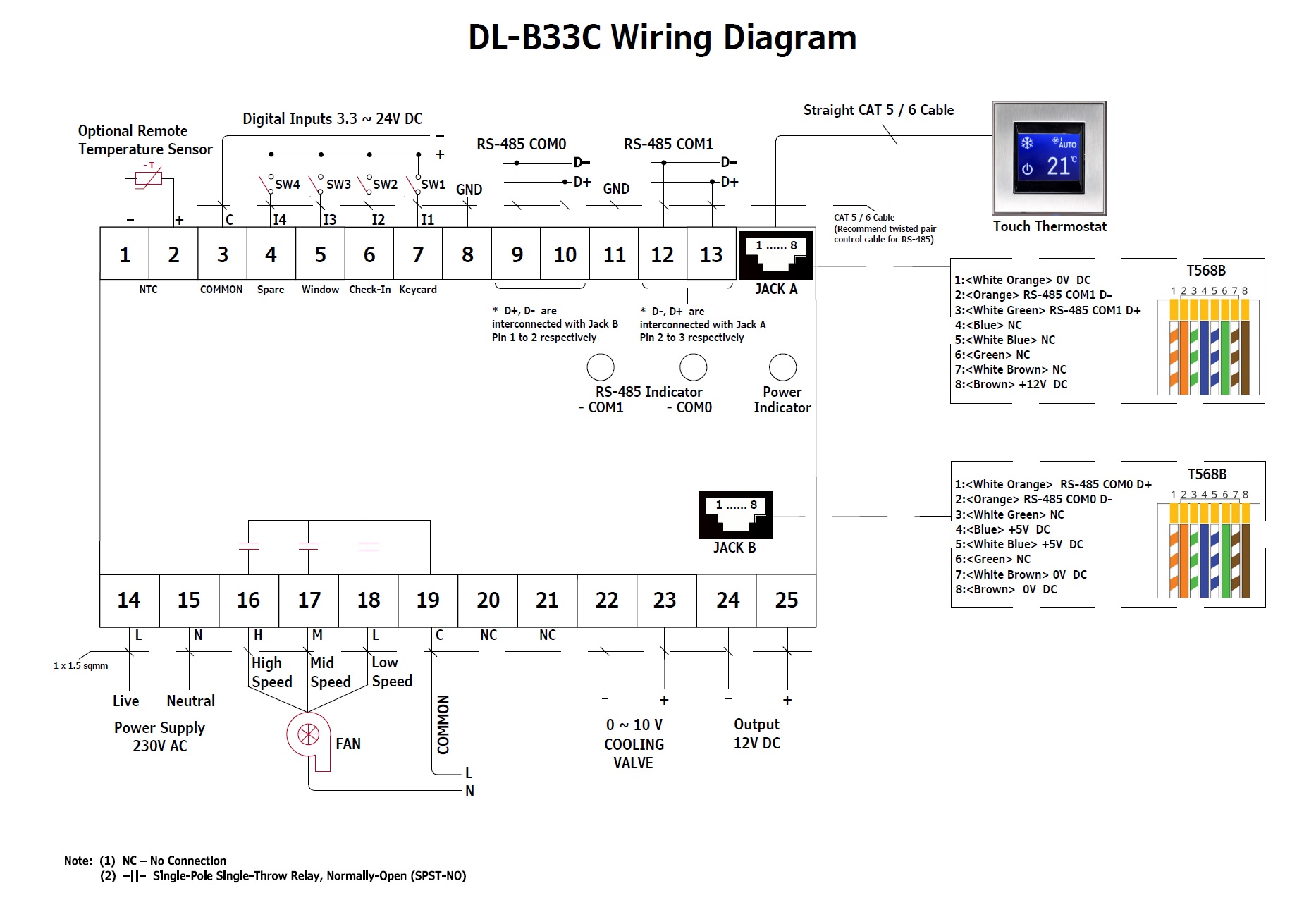

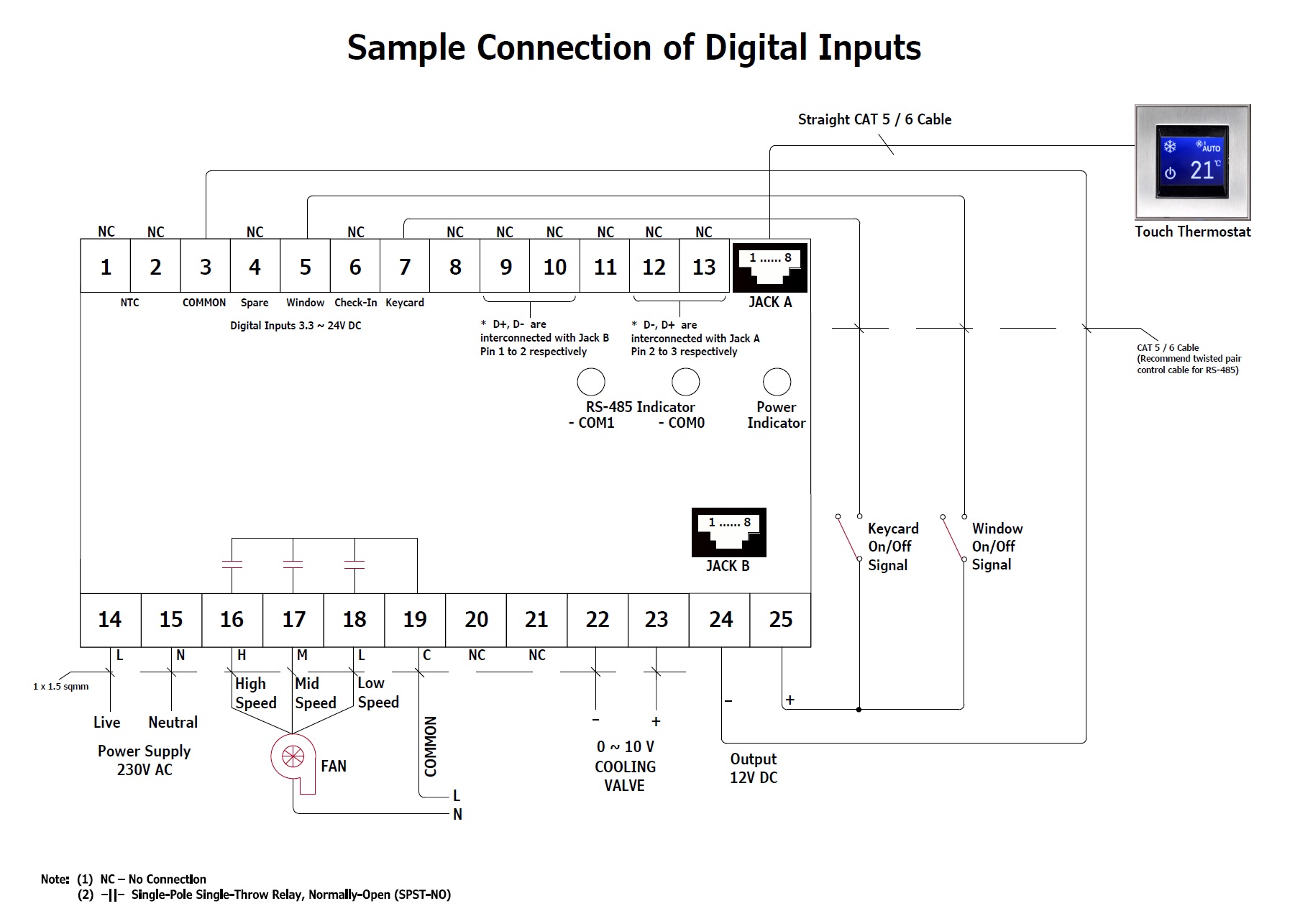

-- Window inputFeatures Data Additional info Input voltage 3.3 - 24V DC Input current (min) 1.5mA Load type input current sinking Logic level activate (1) > 3.0V de-activate (0) < 0.5V Isolation yes Digital input's power (+V DC and GND) are isolated from controller's power These three inputs can have three independent power supply
