Abridged product coding for smart switch: YYYY-adnnb-P-FFFF





Option

Remark

YYYY product code     EA4202QL - 2 gang smart switch
a wiring method

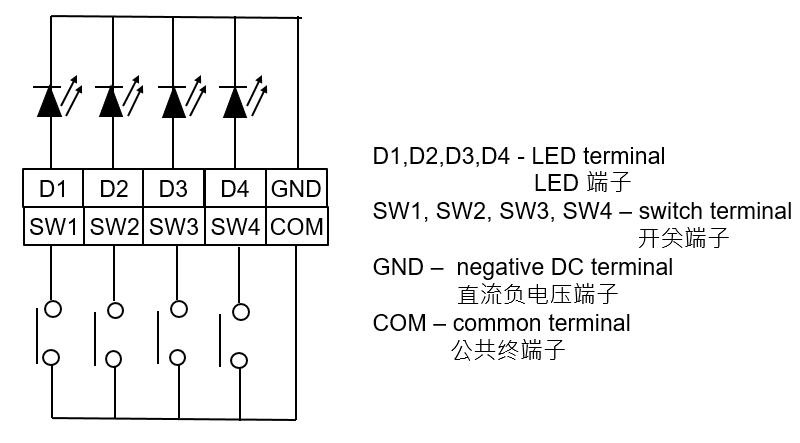

  A   LED - Common cathode
Switch - 3.3V - 24V DC dry contact (can be common cathode or common anode)
smart_sw_A_configuration_png

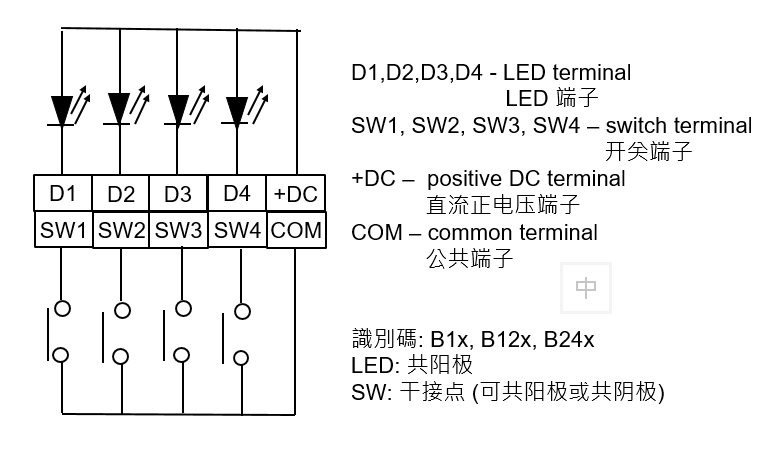

  B   LED - Common anode
Switch - 3.3V - 24V DC dry contact (can be common cathode or common anode)
smart_sw_B_configuration_png

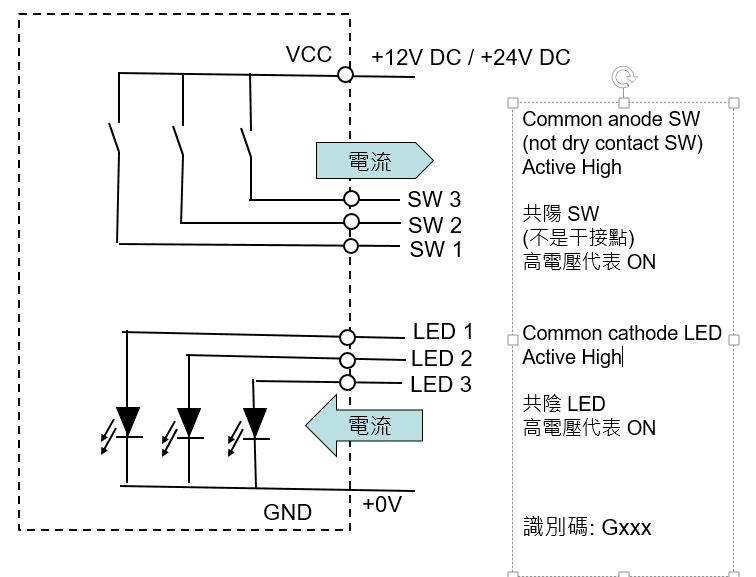

  G   LED - Common Cathode
Switch - Common anode
smart_sw_G_configuration_png

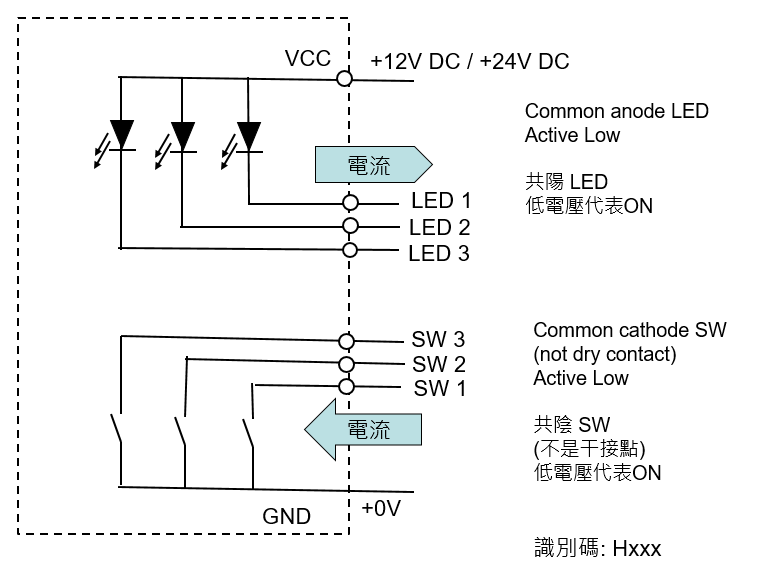

  H   LED - Common anode
Switch - Common cathode
smart_sw_H_configuration_png
d terminal
    Blank

Push-in terminal


    K RJ45 terminal
    T Screw terminal (fixed or plug-in)
nn Input / output voltage
    1 3.3V DC
    5 5V DC
    6 6V DC
    12 12V DC
    24 24V DC
b LED color
    B Blue LED
    G Green LED
    R Red LED
    W White LED
    A Amber LED
    Y Yellow LED
    blank No LED
P external power supply     * need one more pair of cable
    P 12V DC
    Q 24V DC
    D Dali Power (18V DC)
    blank No external power
FFFF Finish color
